2-PC Body Cast Steel Graphite Seated High Temp Floating Ball Valves
Product Details
Features And Specifications
Basic DesignAPI 6D
Face to FaceANSI B16.10
End FlangeANSI B16.5
TestAPI 598, API 6D, EN12266
BW endANSI B16.25
Size & Pressure1/2"~8", 150Lb & 300Lb; 1/2"~4", 600Lb & 900Lb
- Two Piece Cast Steel Body
- Floating Ball, Full Bore or Reduced Bore
- Fire Safe
- Blow-Out Proof Stem
- ISO5211 Mounting Pad
- Locking Device

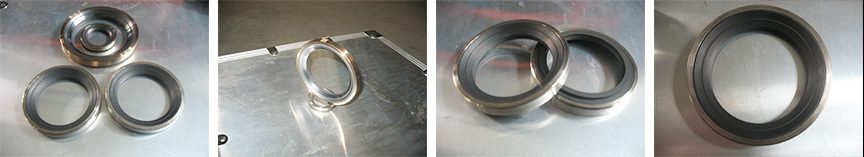

- Special Graphite Seats with high plasticity and tensile strength, high compression resistance
- Working Temperature -200°C ~ +500°C, more economical than metal seated valves
- Suitable for high temperature clean fluids
- Graphite seated steam jacketed ball valve available as well
Production Range
Body Material: Carbon Steel, Stainless Steel
Trim Material: Stainless Steel
Seat Material: Special Graphite
