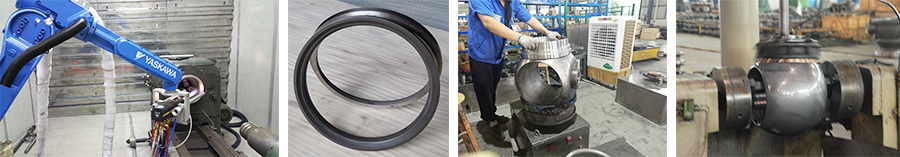

Metal To Metal Seated Floating & Trunnion Mounted Ball Valves
Product Details
Features And Specifications
Basic DesignAPI 6D
Face to FaceANSI B16.10
End FlangeANSI B16.5
TestAPI 598, API 6D, EN12266
BW endANSI B16.25
Leakage Rate TestANSI B16.104
Ball MaterialStainless Steel + Stellited, SFNI, TC or CrC
- Two Piece and Three Piece Cast Steel and Forged Steel Body
- Floating Ball and Trunnion Mounted Ball, Full Bore or Reduced Bore
- Most ideal to Fire Safe and Anti-Static functions
- Blow-Out Proof Stem
- ISO5211 Mounting Pad
- Locking Device
- Ball & seats are hard faced by Stellite, SFNI, TC (Tungsten Carbide), CrC (Chrome Carbide)
- Smart different seat structural designs to suit different working temperature and harshness of fluids
- Various sealing materials: flexible graphite, Karlrez O-ring, TFE U-ring, PPL, sheet metal
- Standard uni-directional flow for floating metal seated; optional bi-directional on request
- Standard bi-directional flow for trunnion mounted metal seated ball valves
- Standard leakage rate ANSI/FCI 70-2 Class VI, optionally ZERO leakage available on request
- Maximum Working Temperature 500°C
Production Range
Size: 1/2" ~ 32"
Pressure: 150Lb ~ 2500Lb
Body Material: WCB, A105, LCB, LF2, WC6, CF8, CF8M
Seat Material: Stainless Steel + Stellited, SFNI, TC or CrC
