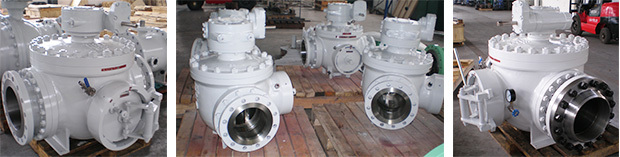

Top Entry Cast Steel Pig Ball Valves
Product Details
Features And Specifications
Basic DesignAPI 6D
Face to FaceManufacturer's Standard
End FlangeANSI B16.5
TestAPI 598, API 6D, EN12266
BW endANSI B16.25
- Cast Steel Uni-Body, Top Entry
- Trunnion Mounted Ball, Full Bore
- Fire Safe Design
- Anti-Static Device
- Blow-Out Proof Stem
- Emergency Sealant Injection
- Pressure Self-Relief
- Cavity Relief Valve
- In-line maintenance capability
Production Range
Size: 4" ~ 56"
Pressure: 150Lb ~ 1500Lb
Body Material: WCB, LCB, CF8, CF8M
Seat Material: RPTFE, PPL, PEEK
