Comprehensive Range of Industrial Valves & Actuators

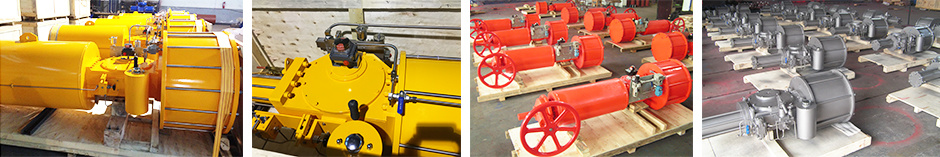

Heavy Duty Fully Modular Design Quarter Turn Pneumatic Actuators

Product Details

Features And Specifications

Double Acting Air SupplyStandard 3 bar ~ 7 bar

D.A. Output Torque (BTO & ETC)830 N.m ~ 263,894 N.m (25 model numbers)

Single Acting Air SupplyStandard 3 bar ~ 6 bar

S.A. Air Break Torque523 N.m ~ 115,175 N.m

S.A. Air End Torque318 N.m ~ 74,570 N.m

Spring Return Break Torque511 N.m ~ 112,369 N.m

Spring Return End Torque307 N.m ~ 71,764 N.m

  • Scotch Yoke actuating for full series
  • Actuating device consists of several modules including driving module, cylinder module, spring module and side override module
  • Standard NAMUR top accessories mounting and ISO5211 bottom valve mounting
