Single Acting Spring Return Quarter Turn Pneumatic Actuators

Product Details

Features And Specifications

Standard Air Supply4 bar ~ 7 bar

Air Break Torque (4 bar)18 N.m ~ 43,257 N.m

Air End Torque (4 bar)12 N.m ~ 31,306 N.m

Air Break Torque (5 bar)25 N.m ~ 61,745 N.m

Air End Torque (5 bar)20 N.m ~ 50,190 N.m

Spring Return Break Torque18 N.m ~ 48,100 N.m

Spring Return End Torque12 N.m ~ 34,100 N.m

Model Numbers15 model numbers

  • Rack & Pinion and piston actuating mechanism for small size actuators
  • Scotch Yoke and piston actuating mechanism for larger size actuators
  • Top of the actuator with NAMUR mounting design facilitates limit switch and positioner mounting
  • ISO5211 bottom flange facilitates valve connecting
  • Electroless nickel plated cylinder bore provides corrosion resistance and reliability
  • Optional local manual override such as side wheel and hydraulic pump

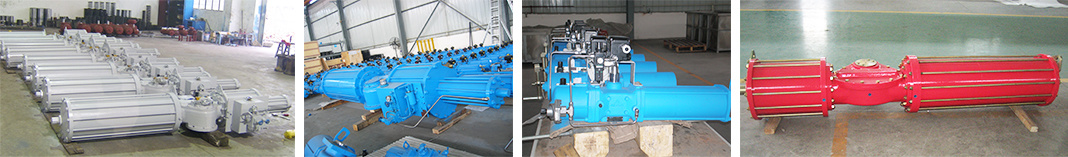

Single Acting Spring Return Quarter Turn Pneumatic Actuators
