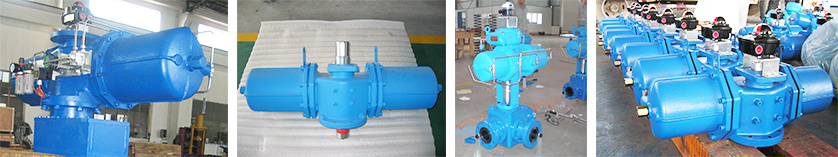

Double Acting Quarter Turn Pneumatic Actuators

Product Details

Features And Specifications

Standard Air Supply3 bar ~ 7 bar

Output Torque (3 bar)21 N.m ~ 49,300 N.m

Output Torque (4 bar)28 N.m ~ 65,740 N.m

Output Torque (5 bar)35 N.m ~ 82,170 N.m

Output Torque (6 bar)42 N.m ~ 98,610 N.m

Output Torque (7 bar)49 N.m ~ 115,045 N.m

Model Numbers (BTO & ETC)12 model numbers

  • Rack & Pinion and piston actuating mechanism for small size actuators
  • Scotch Yoke and piston actuating mechanism for larger size actuators
  • Top of the actuator with NAMUR mounting design facilitates limit switch and positioner mounting
  • ISO5211 bottom flange facilitates valve connecting
  • Teflon lined cylinder bore provides corrosion resistance and reliability
  • Optional local manual override such as lever, gear and hydraulic pump
