Comprehensive Range of Industrial Valves & Actuators

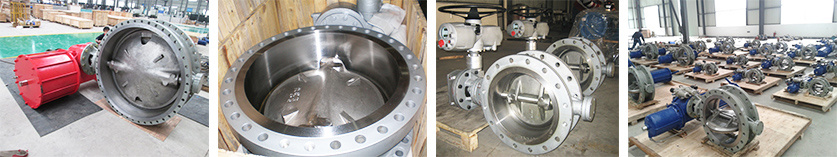

High Performance Butterfly Valves
Product Details
Features And Specifications
Basic DesignAPI 609, DIN 3840
Face to FaceAPI 609, ANSI B16.10, ISO 5752, EN 558
TestAPI 598, ISO 5208
End ConnectionsWafer, Lug, Double Flange and BW
- Double Eccentric or Triple Eccentric design
- Graphite, PTFE laminated disc sealing ring
- Metal Seated
- Zero Leakage
- Blow-out Proof Stem
- ISO5211 Mounting Pad
- Cast iron and steel concentric butterfly valves available on request
Production Range
Size: 2" ~ 48"
Pressure: 150Lb ~ 600Lb
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel
Trim Material: CS+ENP, Stainless Steel, Alloy Steel
Seat Material: Stainless Steel + Stellited
